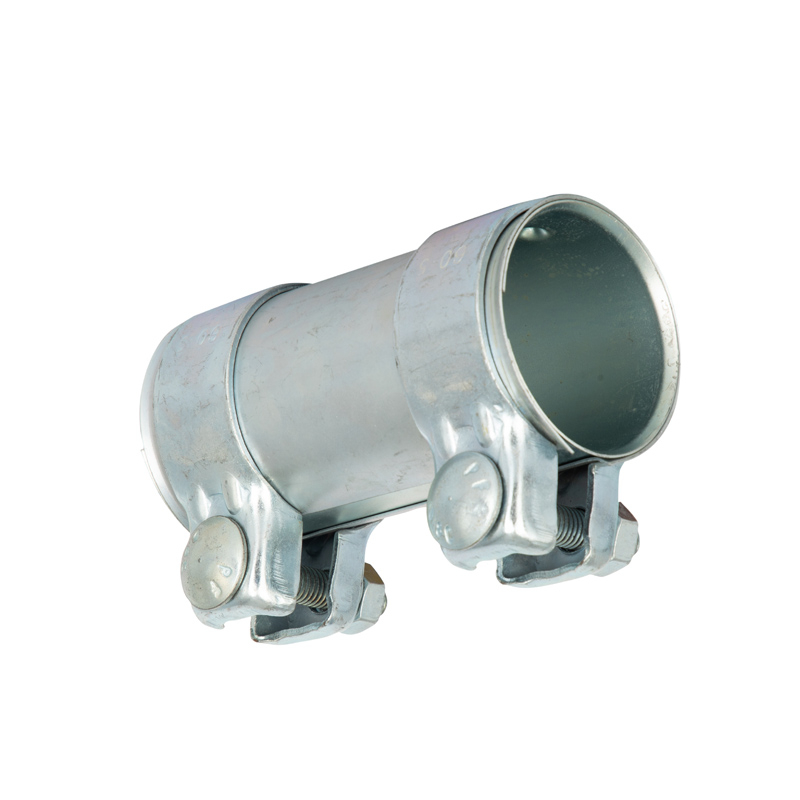

| Exhaust sleeve clamp is a critical component used in the automotive industry to secure exhaust pipes and other tubular components. It provides a strong, leak-free connection between sections of the exhaust system, ensuring optimal performance and durability.The materials available are 304 semi-steel (with a 304 pipe body and carbon steel clamp) and pure carbon steel. The adjustment range is 2mm, with the current smallest diameter being 36mm and the largest 89mm.Exhaust sleeve connectors are usually packaged in cardboard boxes for export, with an option for individual packaging. The general weight of each box is controlled within 15 kilograms, and we can also provide sealed bag packaging. (Please click the Play button in the lower left corner of the first image to watch the product presentation video) | |||||||||
Product Description
Introduction
Our exhaust sleeve connector is generally used to connect two pipes of the same size. Based on the flanging direction at the clamp bolt, it can be categorized into inward flanging and outward flanging types.The two metal bands of the exhaust clamp typically have elasticity and can undergo an arc deformation when tightened by the bolt (the conventional bolt grade is 8.8, but higher grades can be provided if required by the customer). This deformation reduces the internal diameter of the clamp, applying pressure to the exhaust pipe to ensure a tight connection. This pressure is sufficient to prevent gas leakagefrom the pipe joint.
Exhaust sleeve clamps are essential for maintaining the integrity of the exhaust system. They are used to join sections of exhaust pipes, mufflers, catalytic converters, and other exhaust components. Their design allows for quick installation and removal, making them ideal for repairs and upgrades.Especially for the transformation of automotive pipes, we recommend the use of such clamp connection products.
Classification
Clamp->Exhaust clamp
Attributes
Product name: exhaust sleeve clamp,exhaust sleeve connector
Brand: YDCT(Brand customizable)
Material:304 semi-steel (with a 304 pipe body and carbon steel clamp) and pure carbon steel (More material can be supplied according to customers' requirements)
Application scenario:Used in a variety of automotive exhaust systems, including cars, trucks, and motorcycles. Suitable for both OEM and aftermarket applications.
Benefits: Provides a robust, flexible connection that can absorb vibrations and movements, preventing leaks and ensuring the longevity of the exhaust system. Easy to install and remove without causing damage to the exhaust pipes.
Specification
Inward Flanged Exhaust Sleeve Connector: This type features an inward-flanged design at the clamp bolt area, creating an inward-facing rim. During installation, the inward flange ensures that the edge of the clamp closely adheres to the outer surface of the pipe. This design improves the sealing effect by better wrapping around the pipe, thus reducing the risk of leakage.
Outward Flanged Exhaust Sleeve Connector: This type features an outward-flanged design at the clamp bolt area, creating an outward-facing rim. During installation, the outward flange ensures that the edge of the clamp is positioned away from the outer surface of the pipe. While this design offers easier installation and removal, the sealing effect may not be as tight as that of the inward flanged version.
(Click here to get more YDCT clamp product specification catalog file）
ABOUT YDCT
YueDing Corrugated Tube Co., Ltd are a professional metal stainless corrugated pipe, hose, compensator and all kinds of clamps production factory, with more than 30 years of production experience, Our extensive experience has enabled us to assist numerous clients in solving issues related to the installation and selection of pipes and clamps. We provide customized solutions and free samples, allowing clients to test and select the appropriate products.support custom design and wholesale and retail,If you're interested in our products, please email mike@winnow-intl.com,We look forward to hearing from you!
