Specification
These kind of clamps are widely used in the connection of various pipelines, various connections of auto parts and tools.
The main materials of the product are aluminum and stainless steel 304, which are respectively composed of a steel strip, an I-shaped aluminum block, two semicircular spacers, two bolts, two nuts and other parts.
Butt joint clamp + lap joint clamp, Material | Aluminum | SS304 |
Band width | 76mm | 76mm |
Band thickness | 0.6mm | 0.6mm |
Butt joint clamp + lap joint clamp in Common | Both are connected by semi-circular spacers (carbon steel electro-galvanized) and I-shaped aluminum blocks; high-strength standard bolts and nuts | |
Torque | ≥68N | |
The regular size of the butt joint clamp is from 2 inches to 8 inches; the regular size of the lap joint clamp is from 2 inches to 6 inches. The difference between the lap joint clamp and the butt joint clamp are that there is a concave and convex part in the middle of the steel strip of lap joint, when we produce lap joint clamps, we use a hydraulic machine to press the steel strip into two diameters, so that our lap joint clamps can be applied to connect with large pipes and small pipes, the design of large and small calibers also makes our products more docile in the fastening of pipes, with better fastening and sealing performance, and more beautiful.

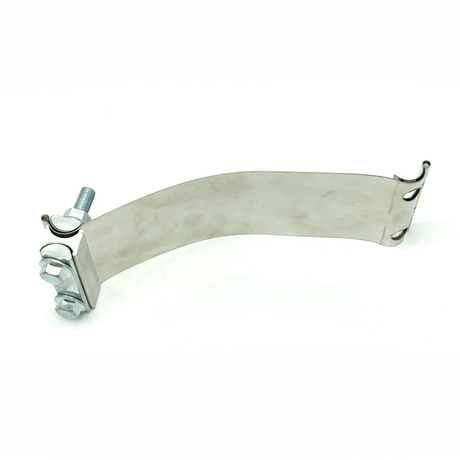

Detailed Images
